front sprocket wear
« on: Oct 20, 2020, 09:37 PM »
Well after putting on the lowering link
I knew the chain would become a little tighter so at the weekend I replaced the front sprocket that I had ordered a few weeks ago and redone the chain tension
The nut on the front sprocket had been loose so I tightened it up when I replaced the chain and ordered the sprocket

Needless to say there is some considerable wear on the output shaft due to the sprocket being loose

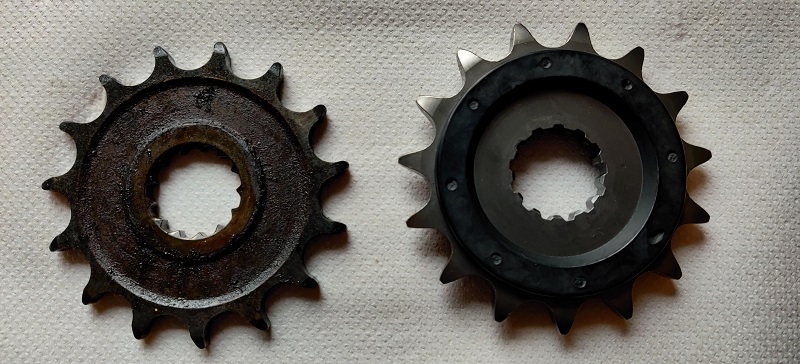

As you can see from the wear on the inside of the old sprocket something to check when you have that cover off to clean the chain
J
« Last Edit: Oct 20, 2020, 09:38 PM by jdoyle »

Offline Wal

  • Versys Mega God
  • ******
  • Posts: 16761
  • City / Town: Durham
  • Country: gb
Re: front sprocket wear
« Reply #1 on: Oct 20, 2020, 10:54 PM »
how many miles on it?   my fronts last about  10-12k miles

Offline jdoyle

  • Versys Pro
  • ***
  • Posts: 124
  • Bike: Versys 650 Mk1
  • City / Town: Wicklow
  • Country: ie
Re: front sprocket wear
« Reply #2 on: Oct 21, 2020, 01:48 PM »
Hey Wal about 43000 now


Think it was that the nut was loose that did the damage
Still it felt ok when I put on the new sprocket it did not feel sloppy  strange enough now that I look at it with my glasses on :-)
J
« Last Edit: Oct 21, 2020, 01:49 PM by jdoyle »

Online TowerMan

  • Information Guru
  • Versys Mega God
  • *
  • Posts: 8260
  • V.I.G.S. rules OK
  • Bike: Mk1V650 + Mk2V1k
  • City / Town: Biggar, Scotland
  • Country: scotland
Re: front sprocket wear
« Reply #3 on: Oct 21, 2020, 02:23 PM »
For piece of mind, if you want to replace the output shaft, you do NOT need to take the engine out and split the crank case as the gear box is a cassette box that comes out the side very easily 👍👍
Richard    :001:


Offline jdoyle

  • Versys Pro
  • ***
  • Posts: 124
  • Bike: Versys 650 Mk1
  • City / Town: Wicklow
  • Country: ie
Re: front sprocket wear
« Reply #4 on: Oct 21, 2020, 05:36 PM »
*Originally Posted by TowerMan [+]
For piece of mind, if you want to replace the output shaft, you do NOT need to take the engine out and split the crank case as the gear box is a cassette box that comes out the side very easily 👍👍

I like the sound of that ! easily  :001:

I will have to consult your manual and see if i'm up to it' but nothing has been easy so far  :001:
Cheers

Offline Wal

  • Versys Mega God
  • ******
  • Posts: 16761
  • City / Town: Durham
  • Country: gb
Re: front sprocket wear
« Reply #5 on: Oct 21, 2020, 07:38 PM »
*Originally Posted by jdoyle [+]
Hey Wal about 43000 now


Think it was that the nut was loose that did the damage
Still it felt ok when I put on the new sprocket it did not feel sloppy  strange enough now that I look at it with my glasses on :-)
J


yeah, that picture puts a different slant on it..... :015:    mind you my Mk1 went 40k on the oem rear sprocket, didnt wear much at all

Offline jdoyle

  • Versys Pro
  • ***
  • Posts: 124
  • Bike: Versys 650 Mk1
  • City / Town: Wicklow
  • Country: ie
Re: front sprocket wear
« Reply #6 on: Oct 23, 2020, 06:19 PM »
*Originally Posted by Wal [+]

yeah, that picture puts a different slant on it..... :015:
I get it Wal a different slant on it  :001:
Took me a while
J
« Last Edit: Oct 23, 2020, 06:19 PM by jdoyle »
