Pawi · « **on:** Nov 22, 2021, 02:59 PM »

Well, it's the most wonderful time of the year.

The time when lunatics like to strip their bikes to clean and fit new parts.

I wanted to also check for any potential nasties that might crop up in the future. Bloody found one.

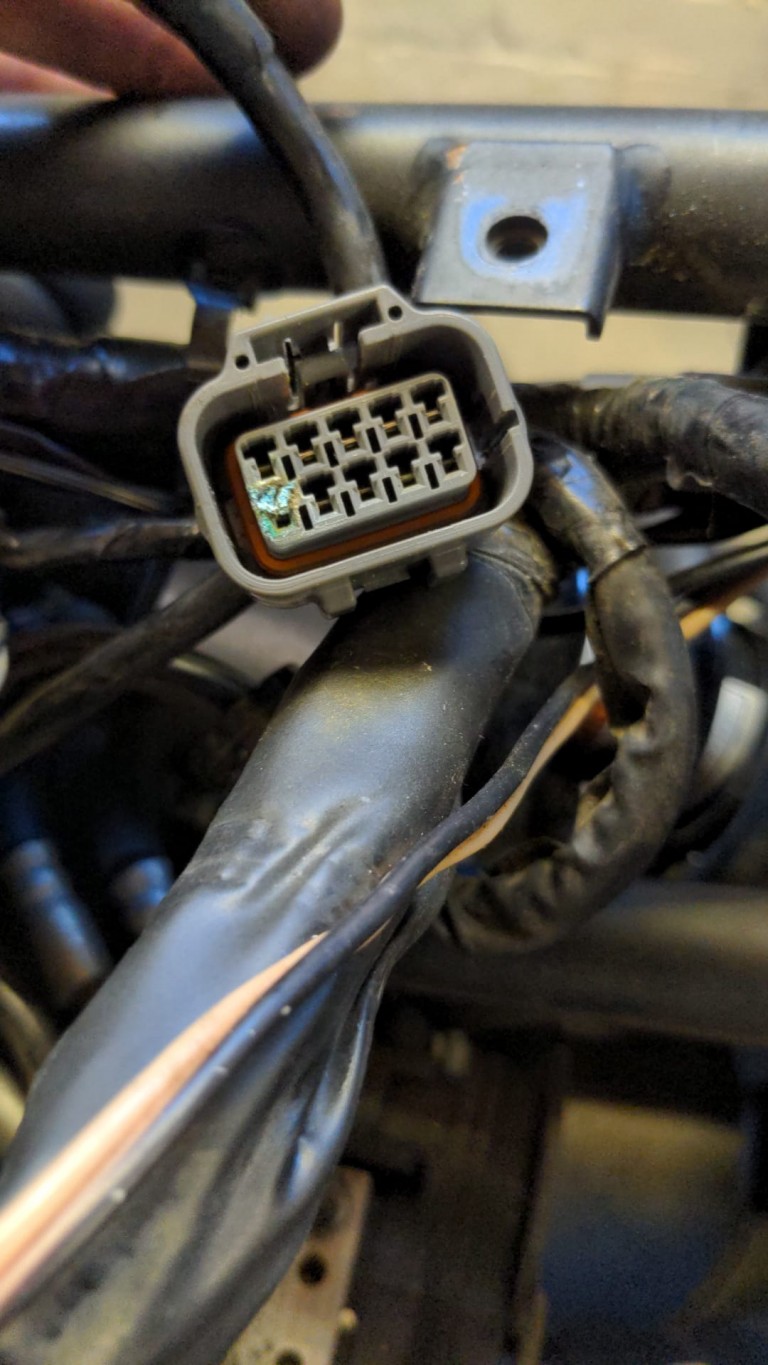

10 pin connector that joins onto the relay box. Appears to be the earth for the ECU main relay.
Any experts out there know how to remove the pin from the plug so Ican further asses the wire, or shine any wisdom onto how I should move forward?

Shandy · « **Reply #1 on:** Nov 22, 2021, 04:04 PM »

WOW!

That's stripped far beyond my capabilities, but fair play to you!

I'd spray a tonne of contact cleaner down there and go at it with a small wire brush or old toothbrush, but like I said you're already far beyond my basic mechanical knowledge. Good luck

Stewie · « **Reply #2 on:** Nov 22, 2021, 05:20 PM »

If you get a terminal screwdriver you should be able to push it in the side and release the pin.

Either shine it up with some wet and dry or crimp a new one on.

wwhite139 · « **Reply #3 on:** Nov 22, 2021, 05:40 PM »

First I suggest you get a set of these: https://www.amazon.co.uk/dp/B07JZ39JTG/ref=cm_sw_em_r_mt_dp_3064SS018NHFMRG9WW11?_encoding=UTF8&psc=1 they may make it a lot easier to get the corroded terminal out without destroying the plug.
Then if you need a new component for the plug you may find this link useful: https://kojaycat.co.uk but you may need the connector out first to confirm which type you need (unless someone already knows what type of connector they are?) Usually the new connector clicks in without a tool.
Oh and don't forget to fill it with some dielectric grease

wwhite139 · « **Reply #4 on:** Nov 22, 2021, 06:17 PM »

The plug does look quite like this (minus the extra alignment slot on the side)
https://www.carmoelectronics.co.uk/index.php?main_page=product_info&cPath=4318_1083_4776&products_id=1675&zenid=eerjme0ut6qdfnk4vbp3a8nov4

Here are a few other sources for connectors

https://www.corsa-technic.com/index.php
http://www.cycleterminal.com/index.html
http://www.easternbeaver.com/Main/Elec__Products/Connectors/connectors.html

Pawi · « **Reply #5 on:** Nov 22, 2021, 07:51 PM »

Massively appreciate the comments so far guys. I'll have a wee look about. My buddy has a set of the pin extractors so I can have a proper look at the weekend.

Originally Posted by wwhite139

First I suggest you get a set of these: https://www.amazon.co.uk/dp/B07JZ39JTG/ref=cm_sw_em_r_mt_dp_3064SS018NHFMRG9WW11?_encoding=UTF8&psc=1 they may make it a lot easier to get the corroded terminal out without destroying the plug.
Then if you need a new component for the plug you may find this link useful: https://kojaycat.co.uk but you may need the connector out first to confirm which type you need (unless someone already knows what type of connector they are?) Usually the new connector clicks in without a tool.
Oh and don't forget to fill it with some dielectric grease
